200W 54.2V 6A Max Long Distance Wireless Charging Module

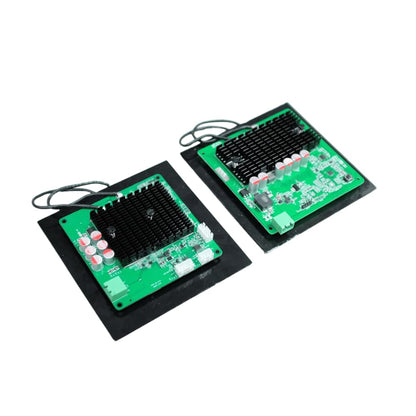

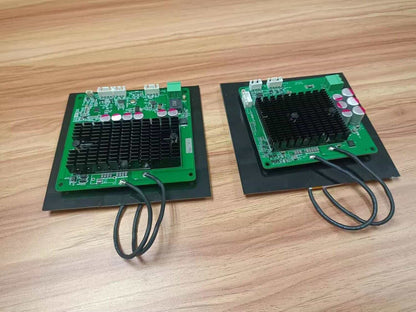

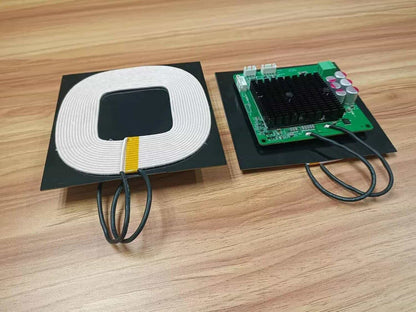

This 200W industrial wireless charging module PCB consists of Transmitting PCB, Transmitting Coil, Receiving PCB, and Receiving Coil.  With a maximum output capability of 54.2V/4A and an impressive 91% DC-to-DC efficiency at 25mm separation, it delivers efficient wireless charging at distances ranging from 15 to 35mm.

Specification:

• Power input: 48V/6A
• Power output: 54.2V/4A Max (Customizable)
• Power input interface: Customizable
• Efficiency: 91% @ 25mm
• Protection: FOD, OCP, OVP, OTP
• Standby power: 0.5W Max.
• Charging distance: 15 to 35mm
• Transmitter dimension:
• PCBA: 100 x 100 x 18mm (L x W x H)
• Coil module: 120 x 120 x 5.5mm (L x W x H)
• Receiver dimension:
• PCBA: 90 x 90 x 18mm (L x W x H)
• Coil module: 120 x 120 x 5.5mm (L x W x H)
• Certification: CE
• Compliant with: UL/FCC/TUV

Applications:

• Personal Mobility: E-scooters, electric bicycles, LEVs (Light Electric Vehicles)
• Robotics: Service robots, delivery robots, industrial robots, autonomous cleaning robots
• Commercial Equipment: Retail floor scrubbers, industrial vacuum systems
• Healthcare: Medical carts, portable diagnostic equipment
• Logistics: Warehouse automation equipment, inventory management robots
• Security: Patrol robots, surveillance drones
• Recreational Vehicles: Electric skateboards, personal transporters

Quick Links:

• Tests:  200w wireless charging module tests
• Datasheet: 200w wireless charging module specification

Bulk Order:

• Request bulk order discount at info@onepointech.com

Lead time:

• 7 - 10 days
