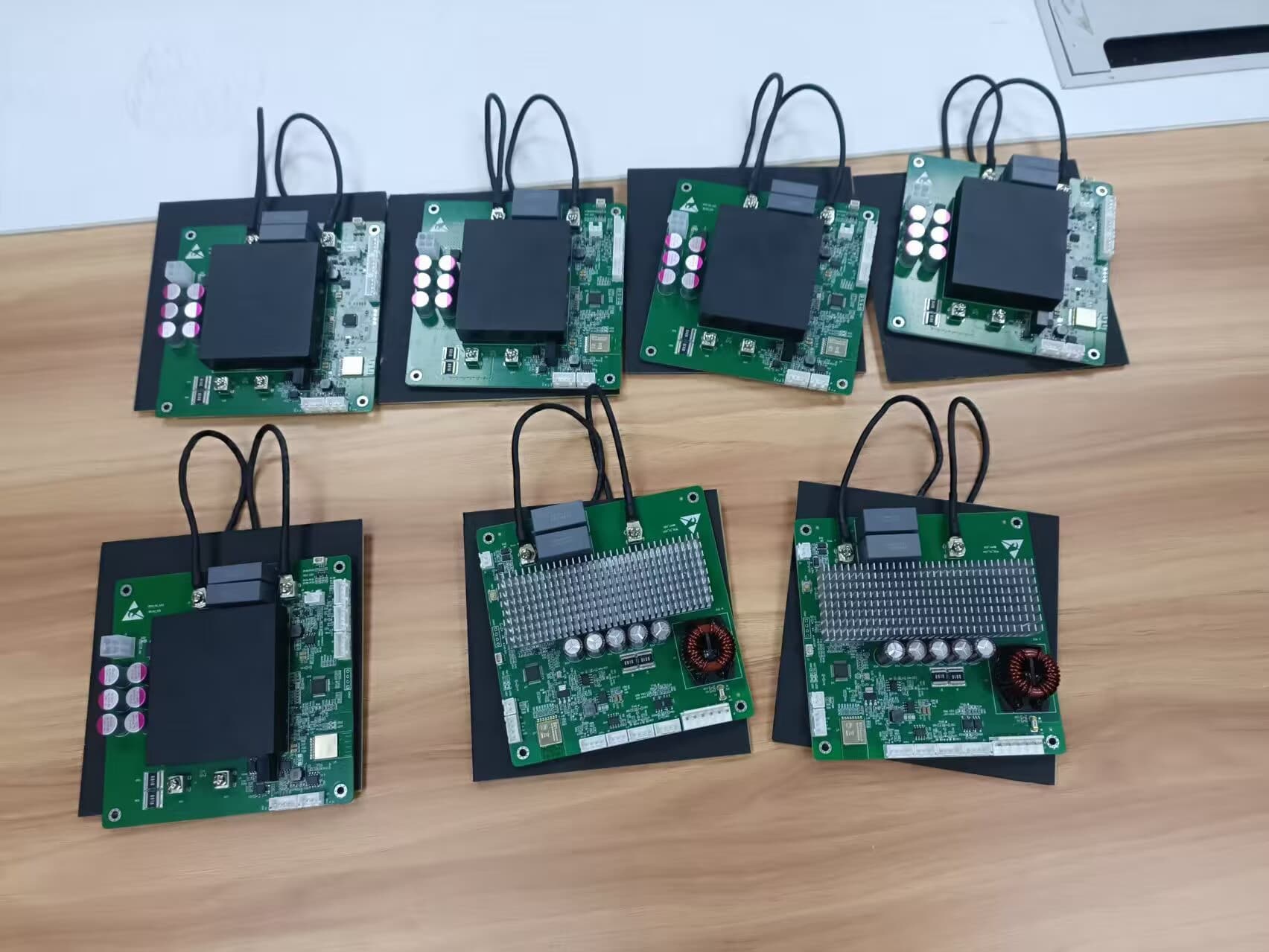

800W 54.2V 15A Wireless Charging Module

This 800W wireless charging module utilizes Inductive-Coupled Power Transmission technology to enable wireless charging at a distance of 25 to 35mm. With a maximum output of 54.2V/15A, it achieves 93% DC-to-DC efficiency at 30mm. Additionally, it incorporates FOD, OVP, OCP, and OTP protection features to ensure safe indoor and outdoor charging. This module is suitable for applications such as wireless charging for humanoid robots and other robotics systems.

Specification:

• Power input: 48V/20A
• Power output: 54.2V/15A (800W Max)

• Efficiency: 93% @ 30mm
• Protection: FOD, OCP, OVP, OTP
• Standby power: 1W Max.
• Charging distance: 25 to 35mm (coil to coil)

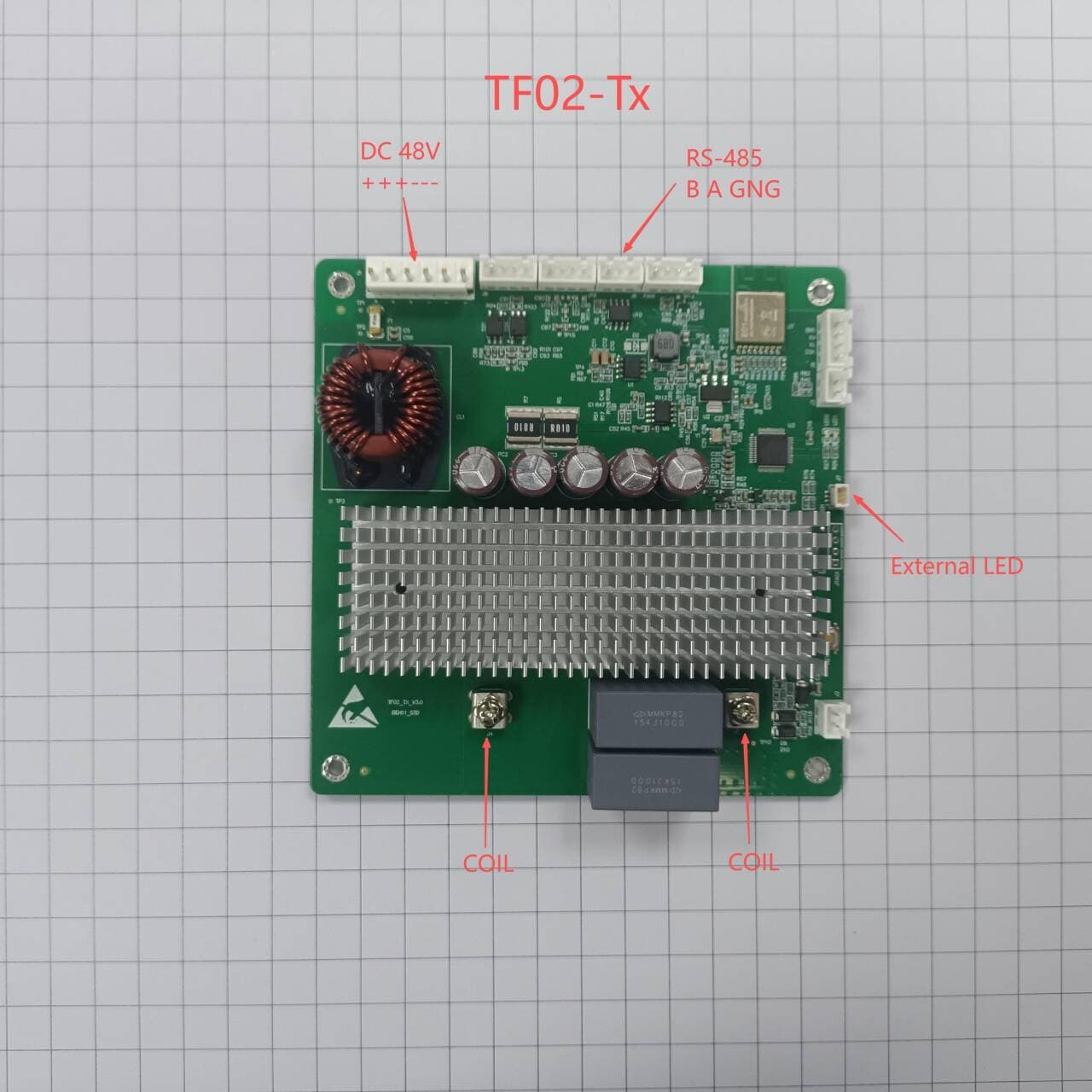

• Transmitter dimension:
• PCBA: 130x130x26mm (Lx W x H)
• Coil module: 140 x 135 x 6mm (L x W x H)

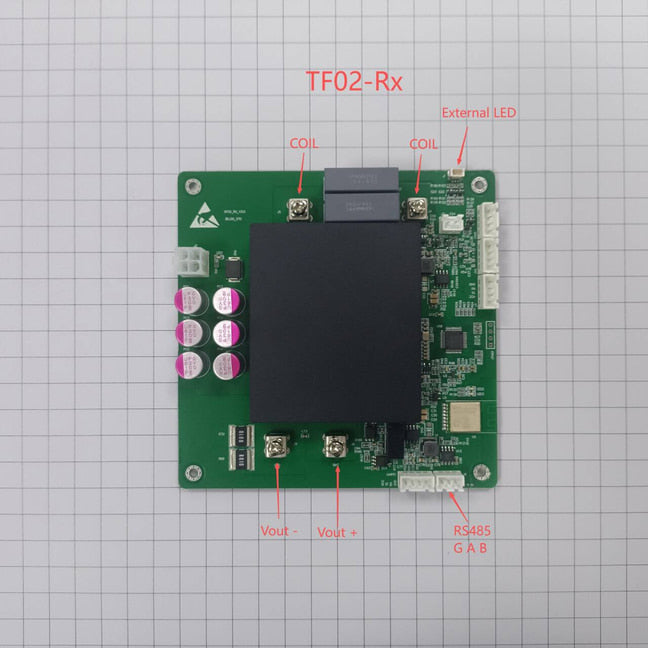

• Receiver dimension:
• PCBA: 130x130 x23mm (L x W x H)
• Coil module: 140 x135 x 6mm (L x W x H)


Applications of the 800W Wireless Charging Module

• AGVs (Automated Guided Vehicles) & AMRs (Autonomous Mobile Robots) – Enables uninterrupted operation with seamless wireless power transfer.

• Industrial Drones & UAVs – Supports fast, cord-free charging for extended mission cycles.

• Medical & Healthcare Robotics – Ensures safe, reliable charging for robotic surgical assistants and disinfection robots.

• Warehouse & Logistics Automation – Powers automated forklifts, sorting robots, and inventory management systems without physical connectors.

• Military & Defense Equipment – Provides robust charging for unmanned ground vehicles (UGVs) and surveillance robots in harsh environments.

• Electric Mobility Devices – Wireless charging for electric wheelchairs, scooters, and last-mile delivery robots.

• Heavy-Duty Robotics – Supports high-power applications like construction robots and exoskeletons.


Quick Links:

• Datasheet: 800W wireless charging module specification

Bulk Order:

• Request bulk order discount at info@onepointech.com

Lead time:

• 10-15 days
