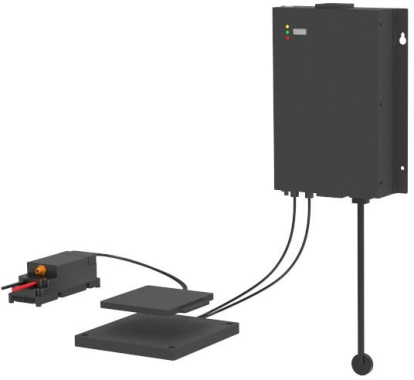

1.5KW Industrial Wireless Charging System | AGV & AMR | 24V 36V 48V | LC180-A30

Eliminate connector wear and charging downtime on your AGV, AMR, or unmanned forklift fleet. The ONEPOINTECH LC180-A30 delivers 1.5KW of wireless power using magnetic coupling resonance — auto-detect, auto-start, no manual intervention required.

📄 Download Full Datasheet (PDF)  |  📧 OEM / Volume pricing: info@onepointech.com  |  ⏱ Lead time: 10 days （confirm with us)

Key Specs at a Glance

• Output Power: 1.5kW Max
• Output Voltage: 24V / 36V / 48V (range: 18–60V)
• Output Current: 25A Max
• Transfer Efficiency: >80%
• Charging Distance: 10–30mm
• Position Tolerance (X/Y): ±20mm
• Max Tilt Angle: 10°
• Operating Frequency: 140kHz
• Communication: CAN / RS485 / LAN
• Startup: Auto-detect, auto-start
• Operating Temp: -20°C to 50°C
• IP Rating: Coils IP65 | TX Controller IP20 | RX Controller IP54
• Battery Types: Li-ion, LiFePO4, Lead-acid, LTO, NiCd

Transmitter

• Input: 100–240V AC, 47–63Hz (110V/25A or 220V/10A)

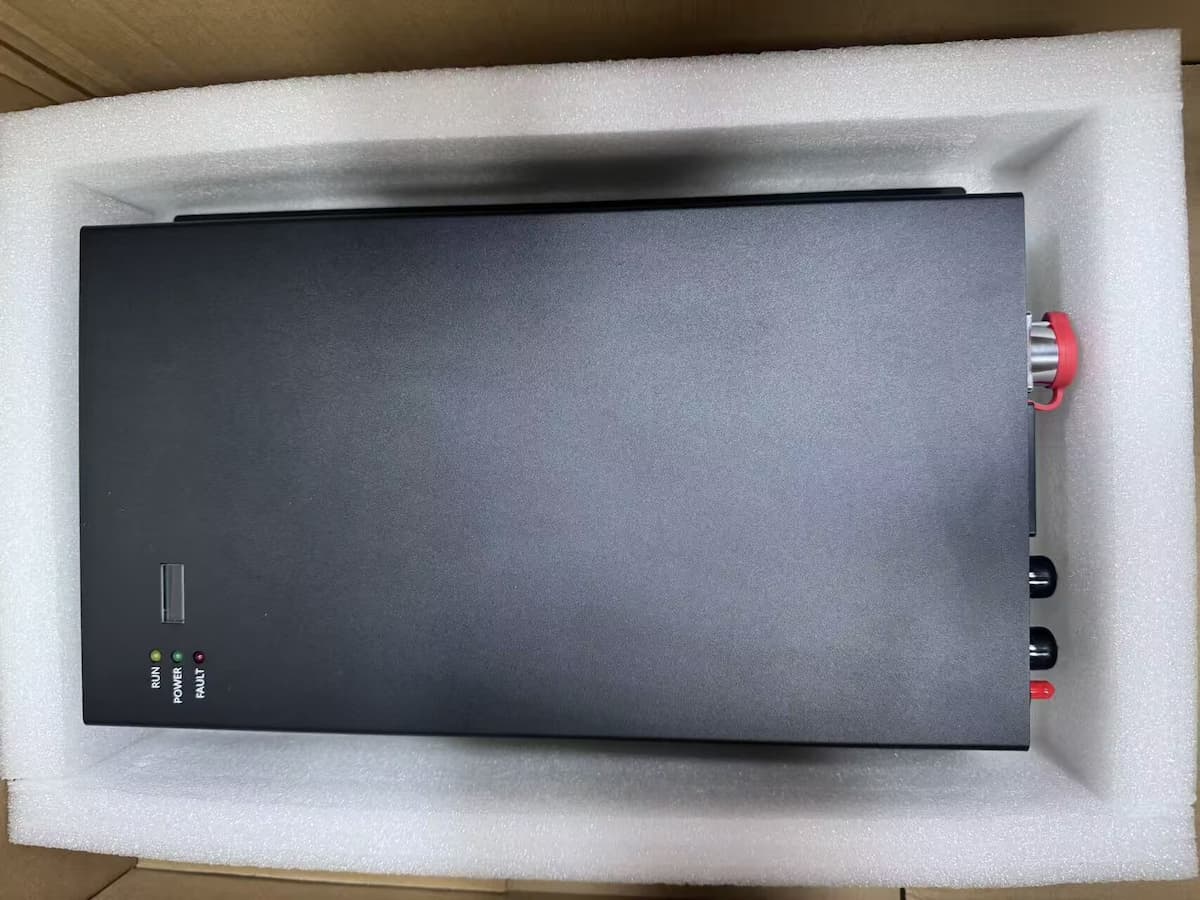

• Controller Size: 390 × 259 × 71mm | ~5kg | IP20 Aluminum
• Coil (Bottom Mount): 225.6 × 225.6 × 17mm | ~2.5kg | IP65
• Coil (Side Mount): 335 × 166.5 × 17.5mm | ~2.1kg | IP65

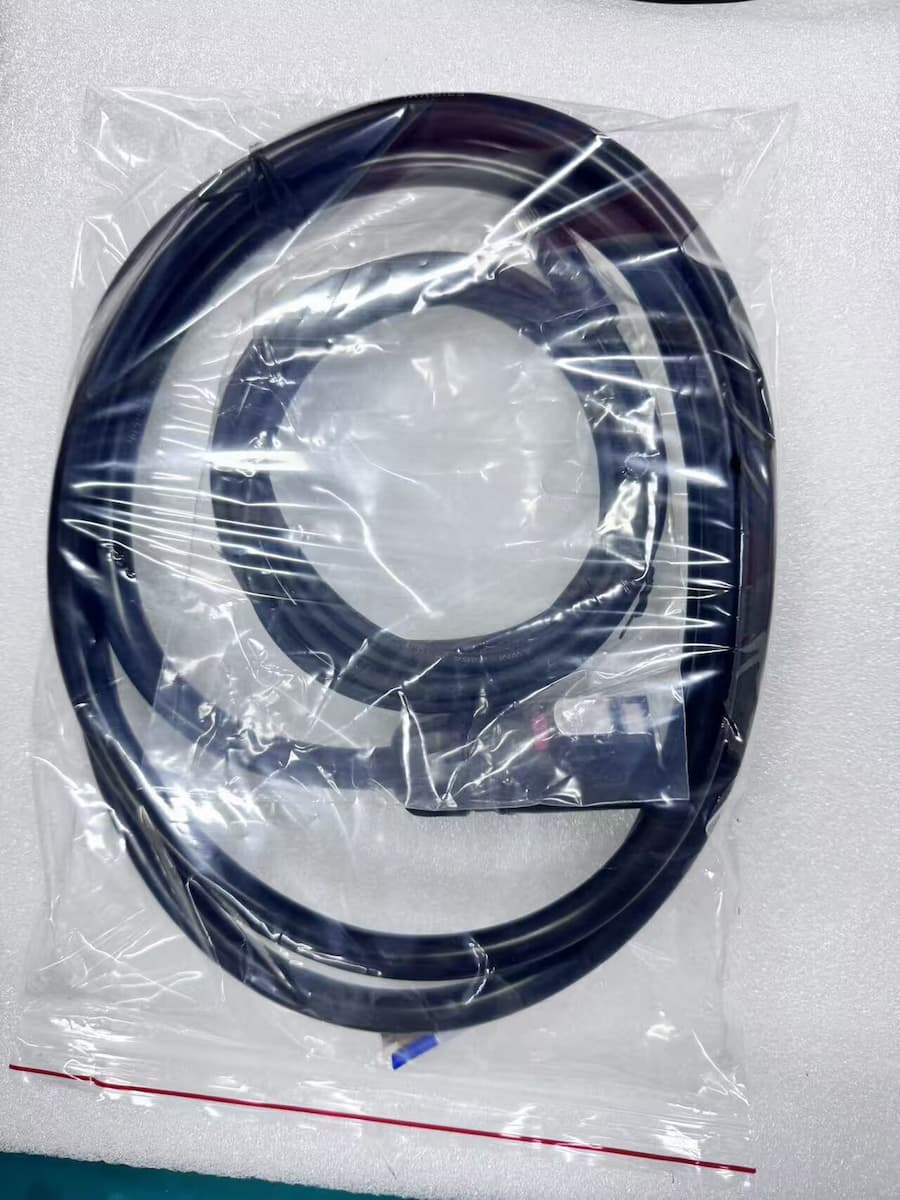

• Cable Length: 3m (Bottom) / 0.8m (Side)

Receiver

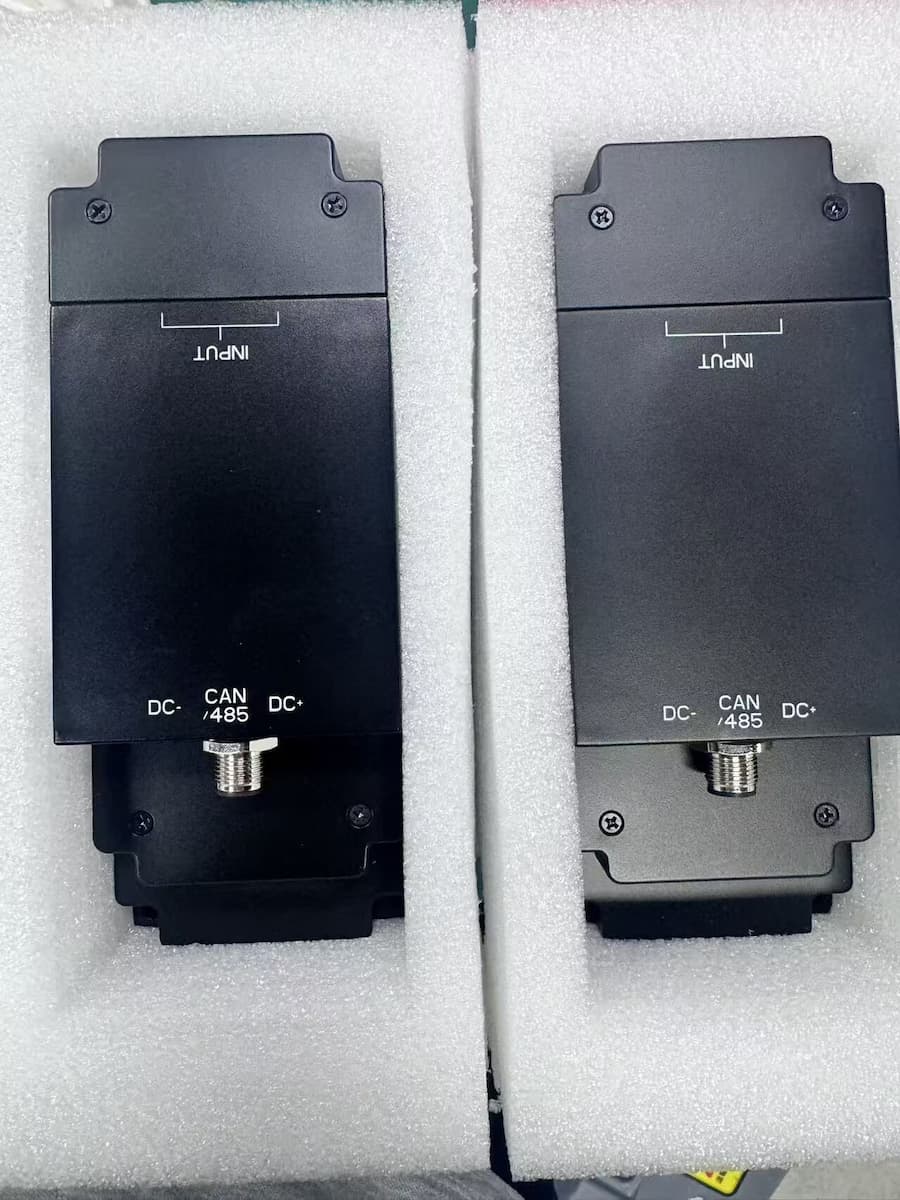

• Controller Size: 193 × 79 × 68.5mm | ~1.5kg | IP54
• Coil (Bottom Mount): 182 × 155.4 × 12mm | ~1.2kg | IP65 | Max load: 0.5T
• Coil (Side Mount): 235 × 111.8 × 29mm | ~1.2kg | IP65
• Output Ripple: ±1% voltage / ±5% current

Protection Features

Overload · Over Temperature · Over Current · Short Circuit · Over Voltage · Load Dump · Foreign Object Detection

Certifications

• EMC: EN 55032, EN 55035, EN 61000 series
• Safety: EN 62477-1, UL 1564, CSA C22.2 No.107.2
• FCC: Part 15
• Chemical: RoHS · REACH · TSCA

Applications

• AGV / AMR warehouse robots
• Unmanned forklifts
• Mobile service & delivery robots
• Industrial cleaning equipment
• Any 24V / 36V / 48V battery-powered industrial vehicle

OEM & Bulk Orders

Custom output voltages and mechanical configurations available. Contact info@onepointech.com for volume pricing and integration support. Lead time: 10 business days (confirm before ordering).
