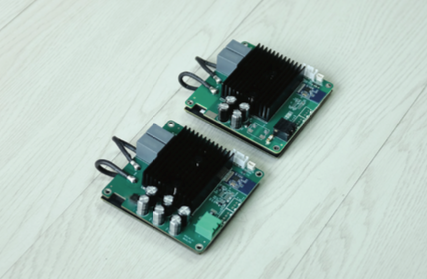

TE10B 200W Wireless Power Module

The TE10B is a standard, off-the-shelf wireless power transfer module that delivers up to 200W of continuous DC power across a 14–19mm air gap — no cables, no exposed contacts, and no battery in the loop. Equipment is powered directly, in real time.

Unlike wireless chargers, the TE10B is built for continuous powering: it maintains stable power transfer while the receiver is rotating or in linear motion, making it a drop-in replacement for slip rings, drag chains, and high-wear connectors.

Key features

• 200W continuous wireless power — DC 24V / 8A output
• 89% DC-to-DC efficiency at 17mm gap
• Maintains power through rotation and linear motion — ideal slip-ring and cable-chain replacement
• Battery-free operation: powers equipment directly, ≤0.5W standby
• Full protection suite: FOD, over-current, over-voltage, over-temperature
• Compact 80 × 80mm PCBA and coil on both sides for easy integration
• Indoor and outdoor operation, −20°C to 55°C

Typical applications

• Robot docking and battery-free robot power
• Drone nests and docking stations
• Rotating joints, rotary tables, and sensor turrets (slip-ring replacement)
• Moving platforms and linear-motion equipment (drag-chain replacement)
• Sealed, washdown, or spark-free equipment

Specifications
