Under-Table Wireless Chargers: The Ultimate Guide to Hidden Charging Solutions

Under-Table Wireless Chargers: The Ultimate Guide to Hidden Charging Solutions

What Are Under-Table Wireless Chargers?

Under-table wireless chargers represent the perfect fusion of functionality and aesthetics in modern workspace design. These innovative charging solutions are discreetly mounted beneath desks, tables, or countertops, providing a wireless charging function without cluttering your workspace with cables or visible charging pads.

Why Choose Under-Table Wireless Charging?

Clean, Minimalist Design

Say goodbye to tangled cables and unsightly charging stations. Under-table wireless chargers maintain your workspace's clean aesthetic while providing convenient charging access.

Space Optimization

Maximize your desk real estate by eliminating the need for surface-mounted charging pads or cable management systems.

Enhanced Durability

Protected from spills, dust, and daily wear, under-table chargers typically last longer than traditional desktop charging solutions.

How Under-Table Wireless Charging Works

Under-table wireless chargers use electromagnetic induction to transfer power through non-metallic surfaces. The charger creates an electromagnetic field that passes through materials like wood, glass, or plastic (typically up to 50mm thick) to charge compatible devices placed above.

Installation Guide

Pre-Installation Checklist

  • Measure your table/desk thickness (must be under 50mm for optimal performance)
  • Ensure the surface material is non-metallic
  • Locate nearby power source
  • Plan the optimal charging zone placement

What You'll Need

  • Your Under-Table Wireless Charger kit (Transmitter Unit, Resonator Pad, Power Adapter)
  • Alignment Board ( included)
  • Pencil
  • Measuring tape (optional, but helpful for precise placement)
  • Cleaning cloth
  • Strong double-sided adhesive (typically pre-applied or included) or screws/drill (if using screw mounting)

Step 1: Prep the Under-Desk Surface

  1. Clean the Area: Locate your desired charging spot on the top of your desk. Then, access the underside of your desk directly beneath that spot. Use a clean cloth to thoroughly wipe down this area, ensuring it's free of dust, dirt, or grease for optimal adhesion.

Step 2: Mount the Transmitter Unit

  1. Position the Transmitter: Peel the film off the double-sided adhesive on the transmitter unit (the main electronic box).

  2. Stick to Desk Bottom: Firmly press the transmitter unit onto the chosen clean spot on the underside of your desk. Ensure it's secure.

    • Alternatively, if your kit uses screws: Use screws to fix the transmitter unit in place.

Step 3: Align and Mark for the Resonator Pad

  1. Place the Alignment Board: Take your alignment board (or tool/sticker) and place it on the top surface of your desk, exactly where you want your device to charge.

  2. Find the Sweet Spot: Move the alignment board around slightly until it indicates the correct charging area, ensuring it's horizontally aligned with the transmitter unit mounted underneath.

  3. Mark the Spot: Once perfectly aligned, use a pencil to lightly mark the precise area (or the center point) for the resonator pad on the top surface of your desk.

Step 4: Install the Resonator Pad

  1. Prepare the Resonator Pad: Based on your desk thickness and the recommended charging distance for your specific model (e.g., QB21), ensure you have the correct resonator pad. Peel the protective film from the adhesive side of the resonator pad.

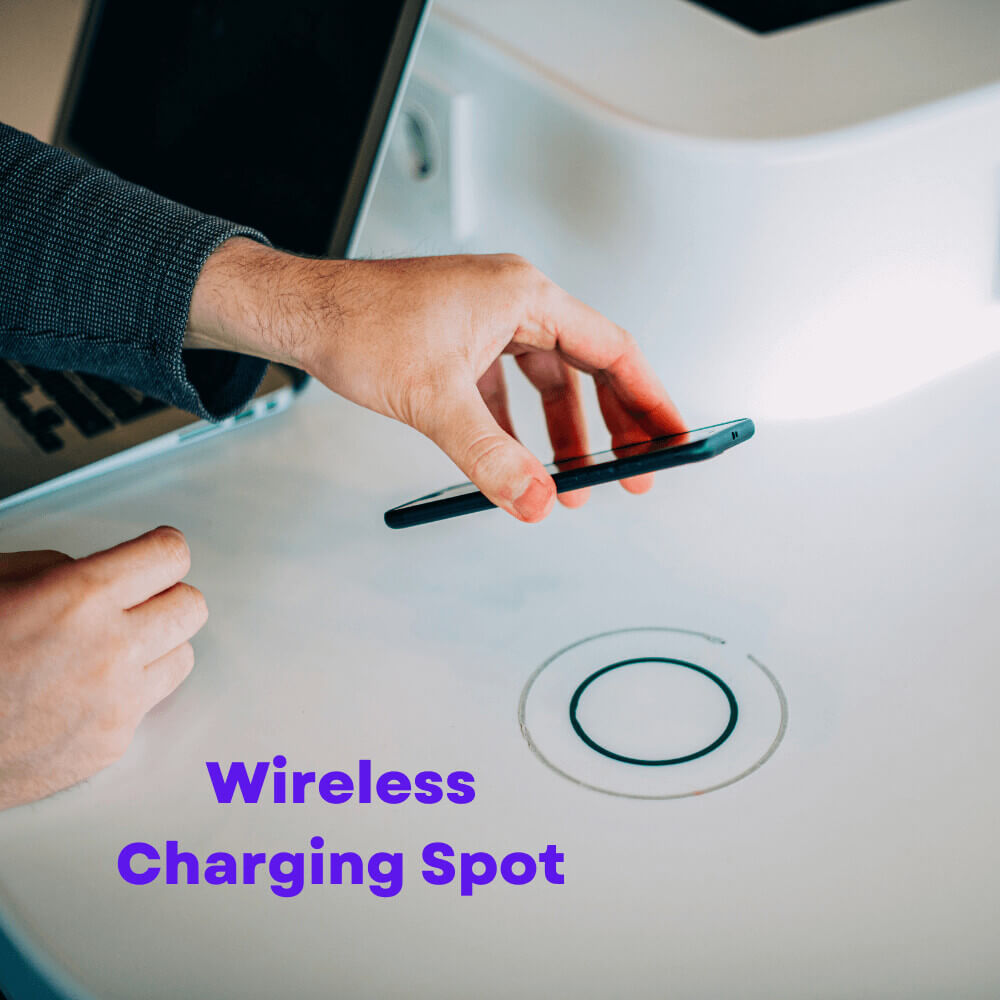

  2. Paste to Desktop: Carefully align the resonator pad with the marks you made in Step 3 on the top surface of your desktop. Press it down firmly to secure it.

Step 5: Power Up and Test

  1. Plug In: Connect the power adapter to the transmitter unit and then plug it into a wall outlet.

  2. Power On & Test: The transmitter unit should light up, indicating it's powered. Now, place your wireless charging-compatible smartphone directly onto the resonator pad on your desk's top surface. Your device should immediately start charging!

Choosing the Right Under-Table Charger

Surface Compatibility

Most under-table chargers work through:

  • Wood (solid wood, plywood, MDF)
  • Glass
  • Plastic and acrylic surfaces
  • Stone and marble (thickness dependent)

Size and Thickness Factor

Consider the available space under your desk and your desk thickness to choose the right charger.

  • QB21/31: 20-50MM
  • QB06: 10-30MM

Popular Applications

Office Environments

Perfect for conference rooms, executive desks, and collaborative workspaces where clean aesthetics matter.

Hospitality Industry

Hotels, restaurants, and cafes use under-table chargers to provide guest charging without compromising interior design.

Home Offices

Ideal for home workspaces, kitchen islands, and bedside tables where you want charging capability without visible hardware.

Maintenance and Troubleshooting

Regular Maintenance

  • Keep the surface above the charger clean and free of debris
  • Check connections periodically
  • Ensure proper ventilation around the charging unit

Common Issues and Solutions

  • Slow Charging: Check surface thickness and device alignment
  • No Charging: Verify power connection and device compatibility
  • Overheating: Ensure adequate ventilation and check for foreign objects

Conclusion

Under-table wireless chargers represent the evolution of workspace design, combining functionality with aesthetics. Whether you're designing a modern office, upgrading your home workspace, or creating a customer-friendly environment, these hidden charging solutions offer the perfect blend of convenience and style.

Ready to transform your workspace with under-table wireless charging? Explore our complete range of under-table wireless chargers designed for every application and power requirement.
