60W 21V 3A Wireless Charging Module

The product uses Inductive-Coupled Power Transmission technology to achieve 15 to 35mm wireless charging. The maximum output power can reach
21V/3A (or customizable) with 91% DC-to-DC efficiency @25mm. At the same time, it has FOD, OVP, OCP, OTP functions to ensure the safety of indoor
& outdoor charging or power transfer.

Technical Data

• Power input: 24V/4A
• Power output: 21V/3A (or customizable)
• Power input interface: Customizable
• Efficiency: 91% @ 25mm
• Standby power: 0.5W Max.
• Charging distance: 15 to 35mm
• Protection: FOD (Foreign Object Detection), OCP (Over-Current Protection), OVP (Over-Voltage Protection), OTP (Over-Temperature Protection)

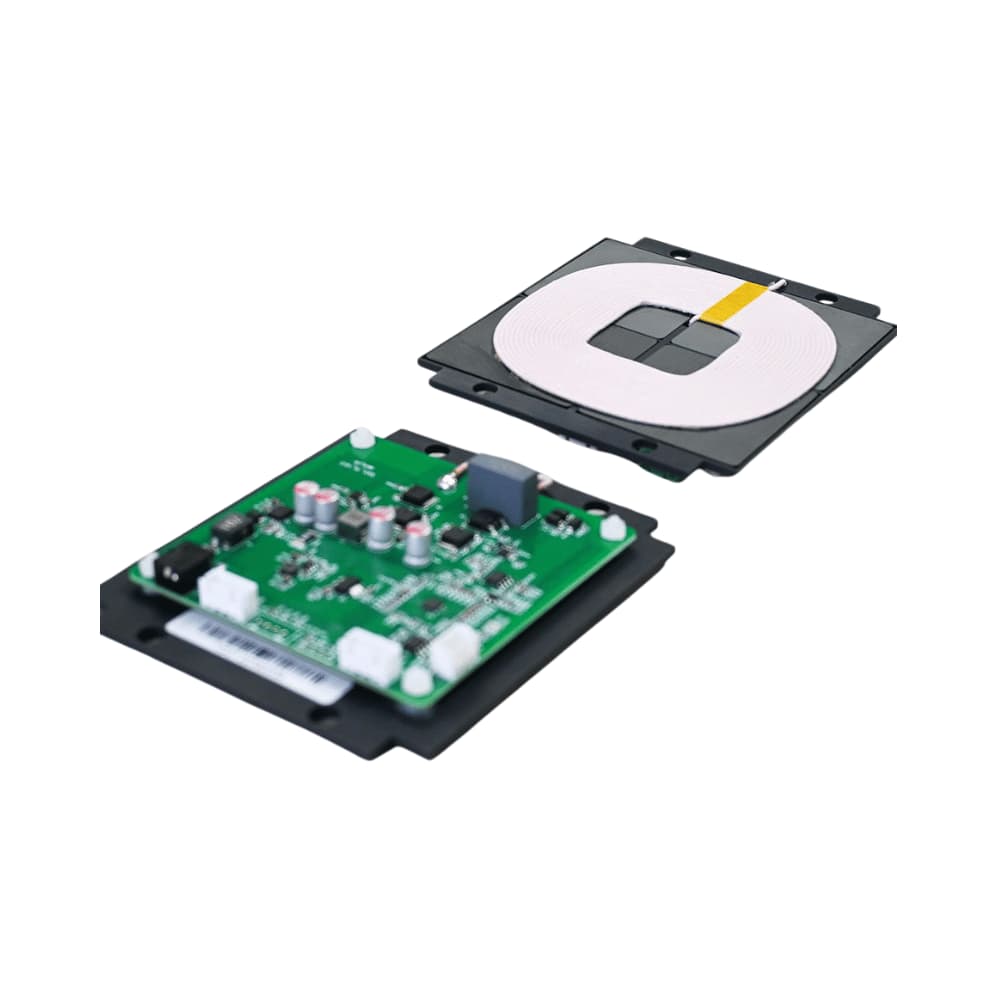

• Transmitter
  PCBA: 90 x 90 x 18mm (L x W x H) Coil module: 100 x 100 x 5.5mm (L x W x H)
• Receiver
  PCBA: 90 x 90 x 18mm (L x W x H) Coil module: 100 x 100 x 5.5mm (L x W x H)

Lead time

• 7 - 10 days
