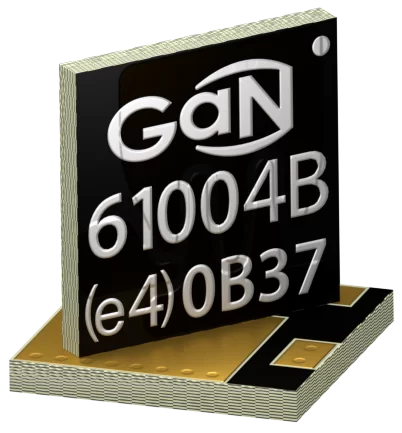

GS61004B 100V 38A Bottom-side Cooled GaN Transistor

GS61004B in stock. GaN FETs 100V 38V GaN E-mode GaNPX package bottom-side cooled

Features
• 100V enhancement mode power transistor
• Bottom-side cooled configuration
• RDS(on) = 16 mΩ
• IDS(max) = 38 A
• Ultra-low FOM Island Technology® die
• Low inductance GaNPX® package
• Simple gate drive requirements (0 V to 6 V)
• Transient tolerant gate drive (-20 V / +10 V)
• Very high switching frequency (> 10 MHz)
• Fast and controllable fall and rise times
• Reverse current capability
• Zero reverse recovery loss
• Small 4.6 x 4.4 mm2 PCB footprint
• RoHS 3 (6+4) compliant

Applications
• Enterprise and networking power
• Uninterruptable power supplies
• Industrial motor drives
• Solar power
• Fast battery charging
• Class D audio amplifiers
• Smart home
• Wireless Power Transfer
